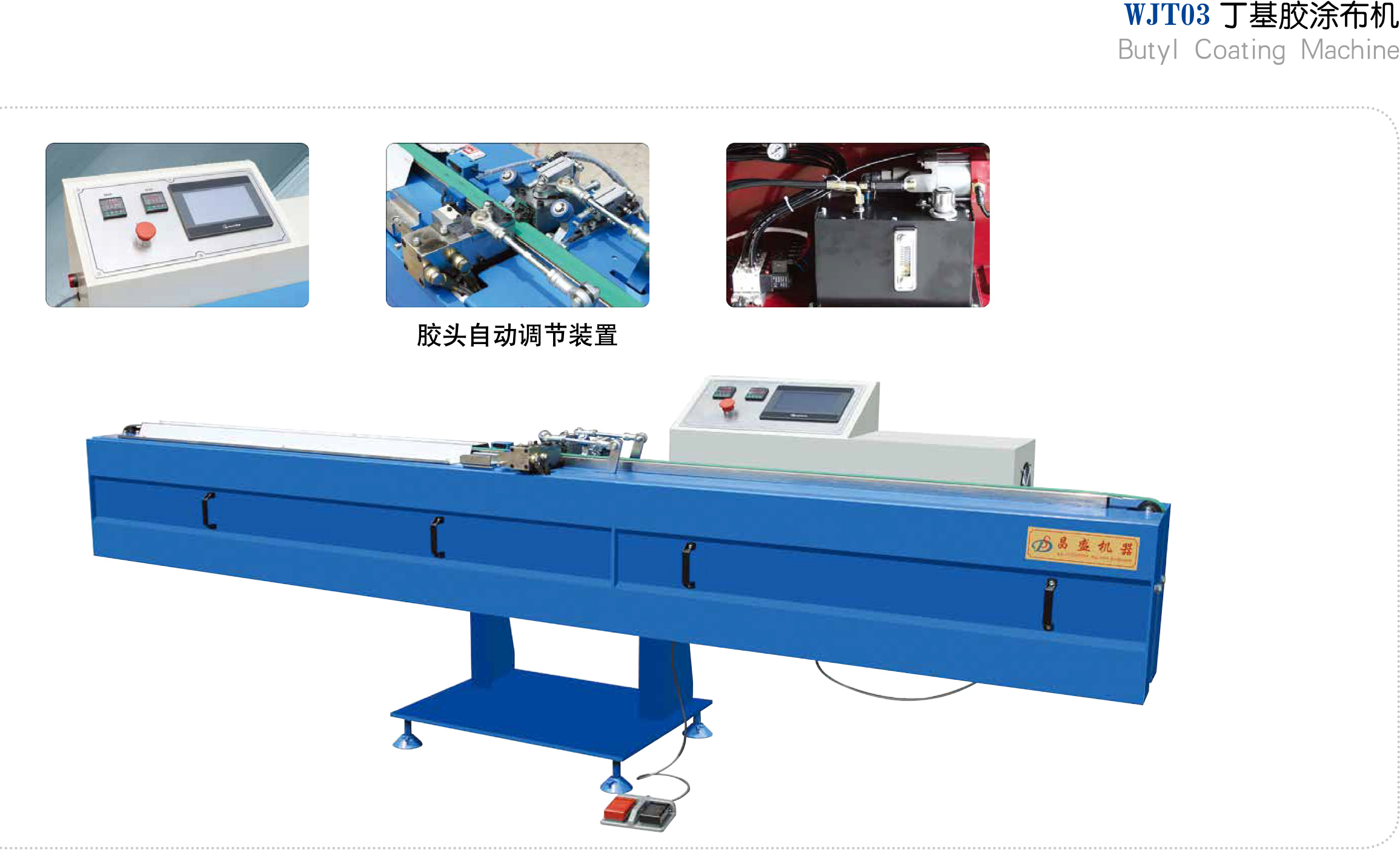

WJT03丁基膠涂布機(進口馬達)




臥式丁基膠涂布機是在鋁間隔框兩側均勻涂抹熱熔丁基膠的專用設備,操作人員需扶持間隔框.其它動作(壓輪、打膠、停膠)均由設定程序自動完成.操作方便,運行平穩可靠。
采用不銹鋼拉絲面板,臺面整潔,外形美觀。
可調速皮帶傳動電機,可適應不同操作人員快捷使用。膠缸內徑D195mm ,長450mm,適用于各種規格的丁基膠。氣液增壓系統.壓力均勻穩定。
丁基膠機裝有光電開關.由PLC電腦程序控制,可實現鋁條自動感應系統,只需人工持框與皮帶同步完成。24小時定時開機,提高工作效率,節省預熱時間。
膠頭寬窄度可自動調整。
膠頭寬窄度可自動調整。
Herizontal butyl nuber coating machine is the aluminum spacing frame on both sides evenly coated hot melt butyl rnuber,special equipment,ope ators need to support the partition framne , other actions (roller , glue , glue) were by setting up the program automatically , convenient
operation, stable and reliable operation .
Stainless steel wire drawing panel , clean and tidy , beautiful appearance.
Adjustable speed belt drive motor, can adapt to the use of different operators .
Rubber cylinder inner diameter 195mm, length 450mm, suitable for all kinds of butyl rubber .Advanced gas—liquid pressure system , uniform and stable pressure.
Ding Ji glue machine is equipped with a photoelectic switch , by the PLC camputer program control , can realize the automatic inductionsystem of aluminum strip, only the manual frame and belt synchronous completion.
24 hours to boot , improve work efficiency, save time .
