丁基膠涂布機采用氣液增壓泵提供打膠壓力，具有壓力平穩、保壓可靠的優點；皮帶傳送采用臺達變頻器控制，具有四個段速，適用于不同熟練操作工人的使用；傳送皮帶選用的片基帶，經久耐用。整帶裝有漲緊裝置，調節方便、維修簡單；膠頭部分采用Z新的出膠結構，根據鋁條的寬度，可不卸壓自由調節兩膠頭的間距；整機采用光電和PLC控制系統，新穎的雙壓輪定位，傳送、涂膠均可通過人機界面調整，操作方便、性能可靠，是生產中空玻璃必不可少的設備。

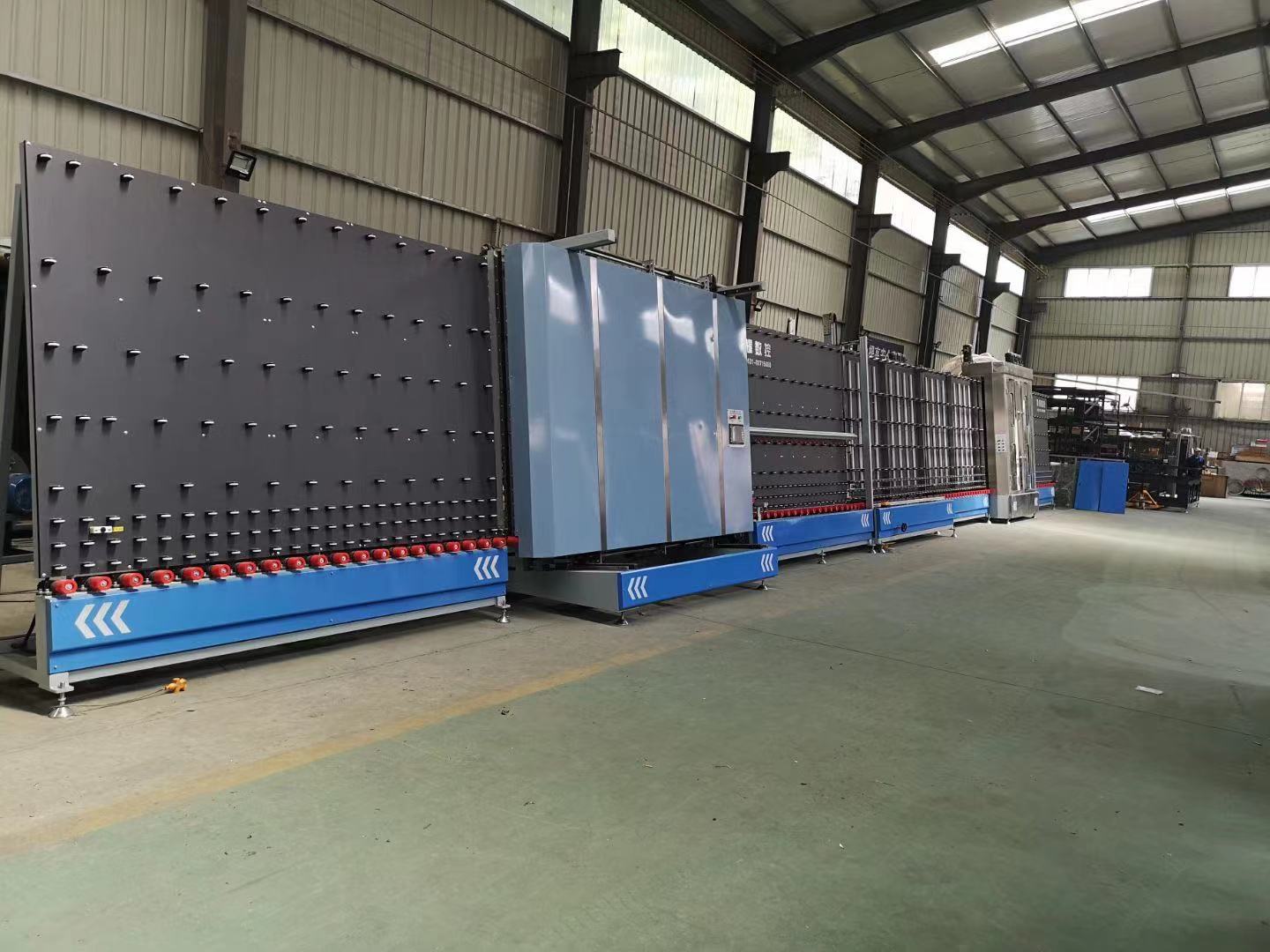

Butyl rubber coater adopts gas-liquid booster pump to provide glue pressure, which has the advantages of stable pressure and reliable pressure holding; Belt transmission is controlled by delta frequency converter, with four segment speeds, which is suitable for different skilled workers; The transmission belt adopts chip baseband, which is durable. The whole belt is equipped with a tightening device, which is convenient for adjustment and simple for maintenance; The glue head part adopts Z new glue outlet structure. According to the width of the aluminum strip, the distance between the two glue heads can be adjusted freely without pressure relief; The whole machine adopts photoelectric and PLC control system. The novel double pressure wheel positioning, transmission and gluing can be adjusted through the human-machine interface. It is an essential equipment for the production of insulating glass with convenient operation and reliable performance.

特點
characteristic
PLC控制，自動壓緊和涂膠
PLC control, automatic pressing and gluing
溫控表精確控制膠缸與膠嘴溫度，溫度可根據實際需要進行手動調節
The temperature controller accurately controls the temperature of the rubber cylinder and nozzle, and the temperature can be manually adjusted according to actual needs
氣液增壓系統，壓力穩定
Gas liquid pressurization system, stable pressure
工作氣壓、涂膠量、鋁條寬度等參數可根據實際需要進行調節
Parameters such as working pressure, gluing amount and aluminum strip width can be adjusted according to actual needs
定時開關機功能
Timing switch function
膠頭部分采用Z新的出膠結構，可不卸壓自由調節兩膠頭的間距
The rubber head part adopts Z new rubber outlet structure, which can freely adjust the spacing between the two rubber heads without pressure relief
變頻器控制，具有四個段速，可根據操作工人熟練程度自行調節
Frequency converter control, with four segment speeds, which can be adjusted according to the proficiency of operators
以上就是為大家介紹的有關立式丁基膠涂布機的詳細的介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務http://www.shanggu88.com
The above is a detailed introduction about the vertical butyl adhesive coater. I hope it will help you If you have any questions, please contact us We will provide you with professional service http://www.shanggu88.com
